Product Overview

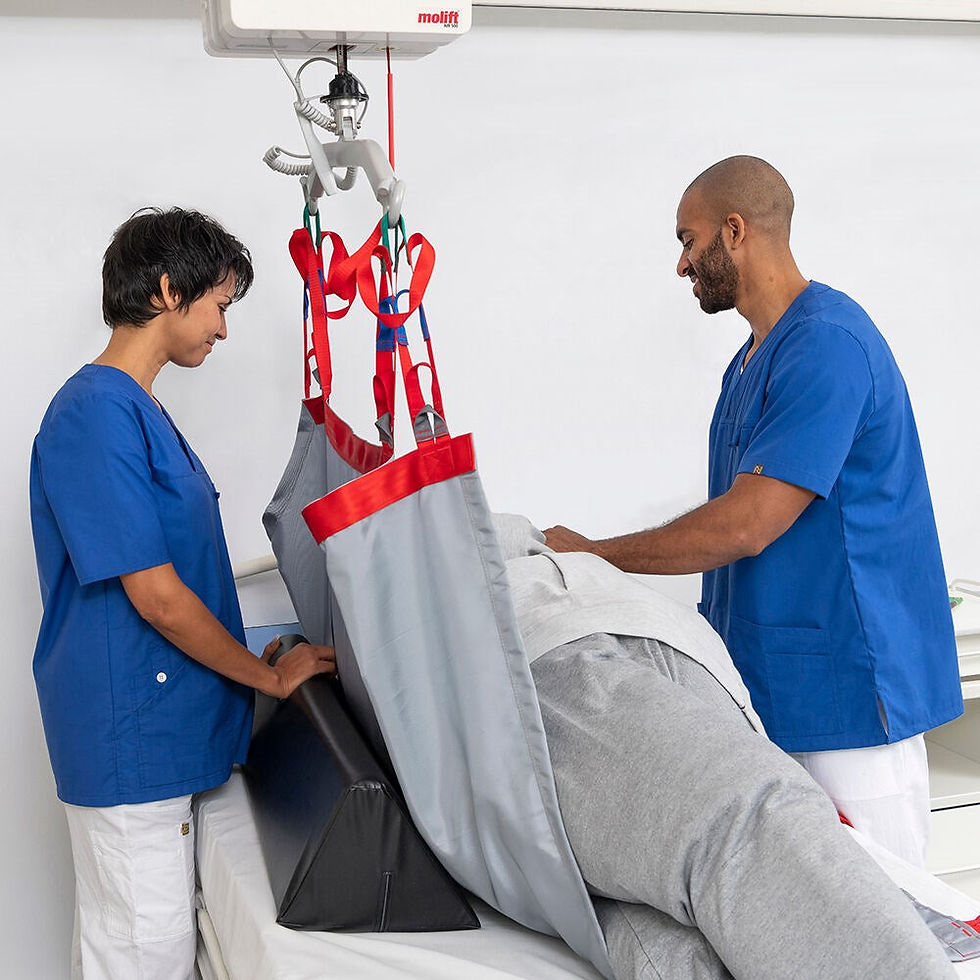

The Molift Air 500 has been designed for Bariatric users and offers a lifting capacity of 500 kg to transfer patients in a safe, smooth and comfortable way. The sling bar has been specially designed for the bariatric user.

Molift Air works quietly and has a soft start and stop operation. This creates a comfortable and safe feeling for the user during transfer. With its standard 3 meters lifting strap Molift Air has one of the largest standard hoisting intervals on the market. The Molift Air is suitable for sitting and horizontal transfers as well as standing and gait training situations. It is used with fixed ceiling rails but can also be used for portable freestanding systems. The Molift Air is easy to handle during installation and servicing, due to its very low weight and clever quick-release function. It offers flexible solutions such as remote control and possibilities for room-to-room transfer, together with the comprehensive accessory program from Molift. It is suitable for ceiling hoist installations in aged care facilities and hospitals and is available with a comprehensive range of accessories. The Molift Air has a class-leading lifting interval and is available in the following Safe Working Load options.  Please click on each of the sizes for more product information:

  • 200 kg
  • 350 kg
  • 500 kg.

  Due to the complex nature of this product, we have trained professionals who can provide assistance to ensure this equipment supports your needs. Please get in touch with us, and we will put you in direct contact with a product specialist in your area.

Features

  • Environmentally Friendly Ni MH batteries
  • Automatic Service Notification Included
  • In-Rail Charging
  • Emergency Lowering and Emergency Stop
  • Remote Control
  • Propulsion/Traverse Motor
  • Emergency Lowering: Mechanical and Electrical
  • Emergency-Stop: Reset Possible from Floor Level
  • Modern Design
  • Easy to Install and simple to operate
  • Variants include in-rail charging, propulsion trolley and wireless hand control

  Compliance

  • ARTG Number: 360015
  • Australian Standards: 10535:2006
  • Warranty: 2 years, as with all Molift Lifters
  • Molift Batteries and chargers are under warranty for 6 months

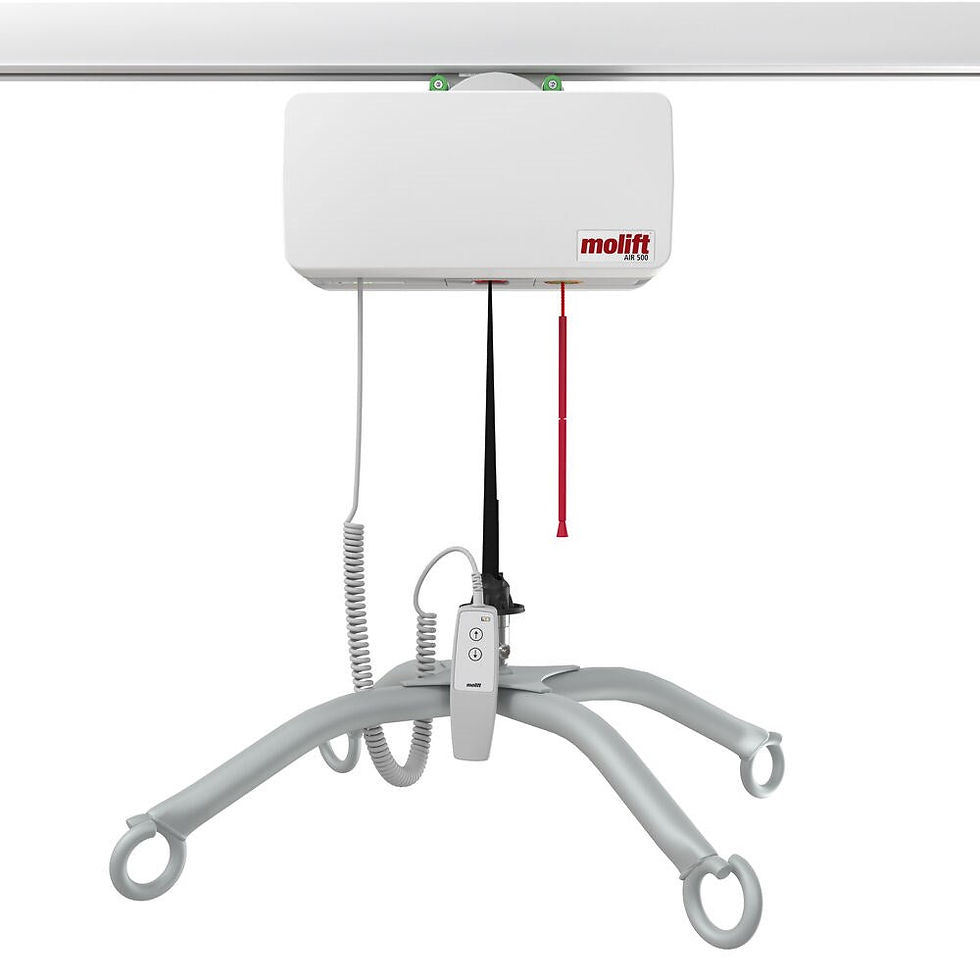

Molift Air 500 Ceiling Hoist Motor

  • Product Name Molift Air 500
    Product Code M26500
    Length (mm) 360
    Width (mm) 250
    Height (mm) 195
    Motor Weight (kg) 15
    Hoisting speed (mm/sec) 30 at 75kg load
    Hoisting interval (mm) 3000
    Safe working load (SWL) (kg) 500
    Battery 12 V SLA 2.9 Ah
    Battery charger 100-240 V AC, 50-60 Hz
    Battery charge time (hours) 6
    Expected lifetime 30 000 lifts SWL/10 years
    Material Aluminium, Plastic
    Protection class IP24
    Service Software Molift Service Tool
